# Dashboard Design: Patterns, Examples, and What Separates Good From Bad

> What makes a dashboard work — the job it serves, the hierarchy, density, and the states most teams never design. With real product examples and a pre-launch checklist.

- Published: 2026-09-11
- Category: Product Design
- Author: Vlad Hrynchuk
- Canonical: https://www.themasterly.com/blog/dashboard-design

Dashboard design is the practice of deciding what earns a place on a screen people open repeatedly and read at a glance. A dashboard works when it answers its user's first question before they scroll, and fails when it shows everything the database happens to hold. The decisions that matter are which job the dashboard serves, which single metric leads, how dense the screen should be for this user, and what action it drives next.

**Key takeaways**

- A dashboard is defined by the job it serves — monitor, report, explore, or act. Screens that try to serve all four serve none of them well.
- One metric should dominate the hierarchy. If a user has to hunt for the number that answers their first question, the layout has already failed.
- Density is a function of role and frequency, not of seriousness. A daily operator wants more per screen than a monthly reviewer.
- The empty, loading, and error states are the ones that ship broken, and on a dashboard they are the states new customers see first.

Dashboard design is the practice of deciding what earns a place on a screen people open repeatedly and read at a glance. The hard part is subtraction. Most dashboards fail because they show everything the database holds rather than the one thing the user came to find out.

That failure is measurable. When the default view does not answer the user's first question quickly, they learn that the useful information takes effort to reach, and they stop making the effort. Dashboard hierarchy is a retention lever before it is a visual one.

## Start by naming the job

Four jobs cover nearly every dashboard. They look similar and behave differently, and a screen that tries to serve all four serves none of them.

**Monitoring.** Live or near-live data, watched for anomalies. Uptime, fraud alerts, fleet status. The design problem is making the abnormal impossible to miss while the normal stays quiet. These need refresh behaviour, [status indicators](https://www.themasterly.com/glossary/status-indicator), and a clear timestamp on every figure.

**Reporting.** A fixed period, summarised. Quarterly performance, monthly spend. These get exported, pasted into decks, and read by people who were not in the product. They need print and share behaviour that most teams discover after launch.

**Exploration.** An analyst slicing data to find something they did not know to look for. Depth of [filtering](https://www.themasterly.com/glossary/filter-ui), drill-down, and saved views matter more than the default layout, because the default is only a starting point.

**Operational.** The screen that drives the next action in a workflow. A support queue, an at-risk deal list. The measure of success is how quickly somebody moves from opening it to doing something, so the actions belong on the rows, not behind them.

Naming the job before opening Figma is the highest-leverage decision in the whole project. It settles refresh rate, density, interaction depth, and what belongs above the fold.

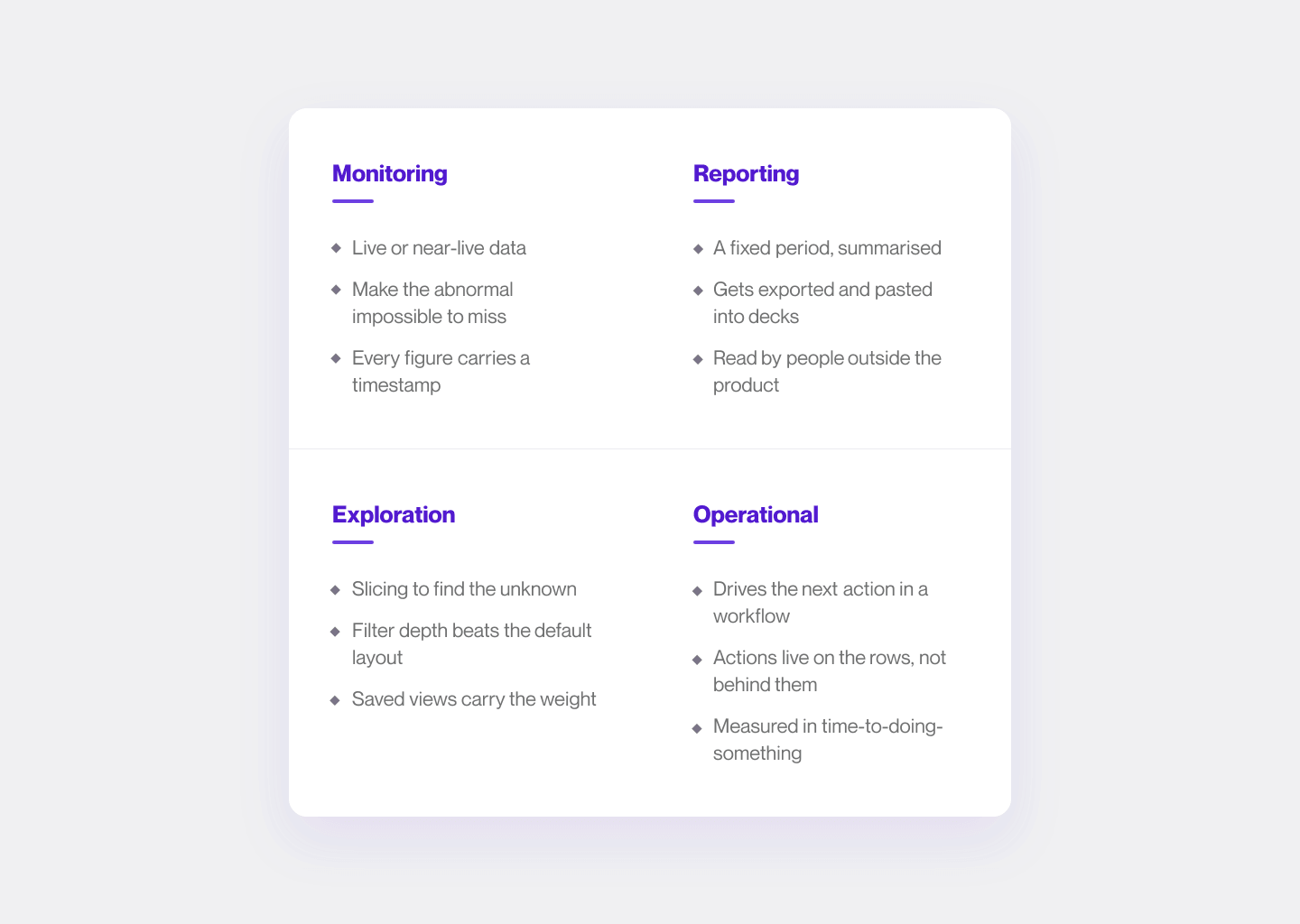

![The four dashboard jobs side by side: monitoring, reporting, exploration and operational, each with the design consequences that follow from it](https://www.themasterly.com/images/blog/dashboard-design/body-1.png)

## Role, metric, density, action

Across dashboards we have designed in fintech, proptech, healthcare, and analytics products, four decisions separate the ones people keep opening from the ones they abandon.

**Role.** Who is the primary user? Not "our users". A specific person with a specific job. Most products have several, and a dashboard serving all of them at sixty percent is worse than one serving the main one completely. Where the roles genuinely diverge, the answer is separate views, not a compromise layout.

**Metric.** What single number or status answers their first question? That figure dominates the hierarchy. Everything else is supporting. Getting this wrong is instantly legible to the user: showing transaction count to a CFO, or account balance to a developer, signals that the product does not understand their job.

**Density.** How much can this person process at once? Density tracks role and frequency, not seriousness. Someone who lives in a tool all day reads a compact table faster than spacious cards, because scrolling costs them more than scanning. Someone opening it monthly needs labels and air.

**Action.** What should happen next? The dashboards that retain users are not reports. They create a visible next step.

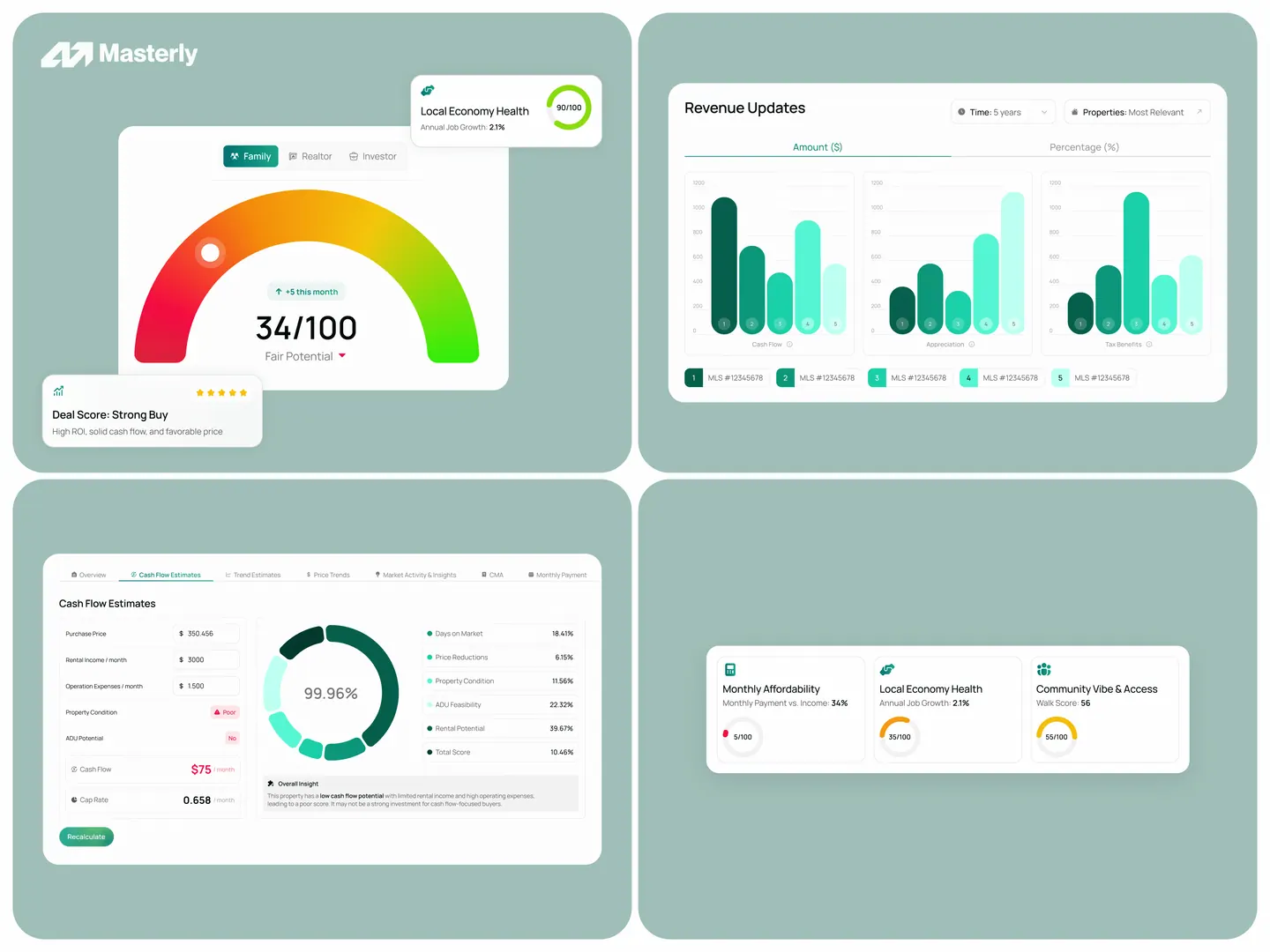

![PropScore property dashboard: Family, Realtor and Investor tabs above a single 34 out of 100 score gauge, with revenue bar charts, a cash-flow breakdown and smaller sub-score gauges](https://www.themasterly.com/images/shots/ai-real-estate-saas-platform-ux-ui-design-from-mvp-to-investor-ready-product--4-w1440.webp)

PropScore scores a property for three different buyers. Rather than averaging their priorities into one view, the tabs switch the whole hierarchy — an investor and a family are asking different questions of the same address.

## The layout layer

**One metric leads.** Size, position, and contrast should make it unmistakable. If a user has to compare two cards to work out which matters more, the hierarchy has failed.

**Five to seven supporting figures** without scrolling. Not a rule about working memory, a practical constraint: every extra card makes the leading metric less prominent. When a stakeholder asks for a twelfth KPI, the useful question is which of the eleven it replaces.

**Group by question, not by data source.** Users think in questions. "How are we doing on revenue?" pulls together figures from billing, CRM, and product analytics. Organising the screen by the system each number came from is an internal concern leaking into the interface.

**Put time controls where they are visible.** Most dashboard confusion traces back to somebody misreading the period. The [date range control](https://www.themasterly.com/glossary/date-picker) belongs at the top, with the active range stated in words rather than implied by a highlighted preset.

The [grid](https://www.themasterly.com/glossary/grid-system) underneath all of this is usually a sidebar plus a flexible content area rather than a column grid. What keeps it coherent is a consistent [spacing scale](https://www.themasterly.com/glossary/spacing-scale) and a small set of card sizes.

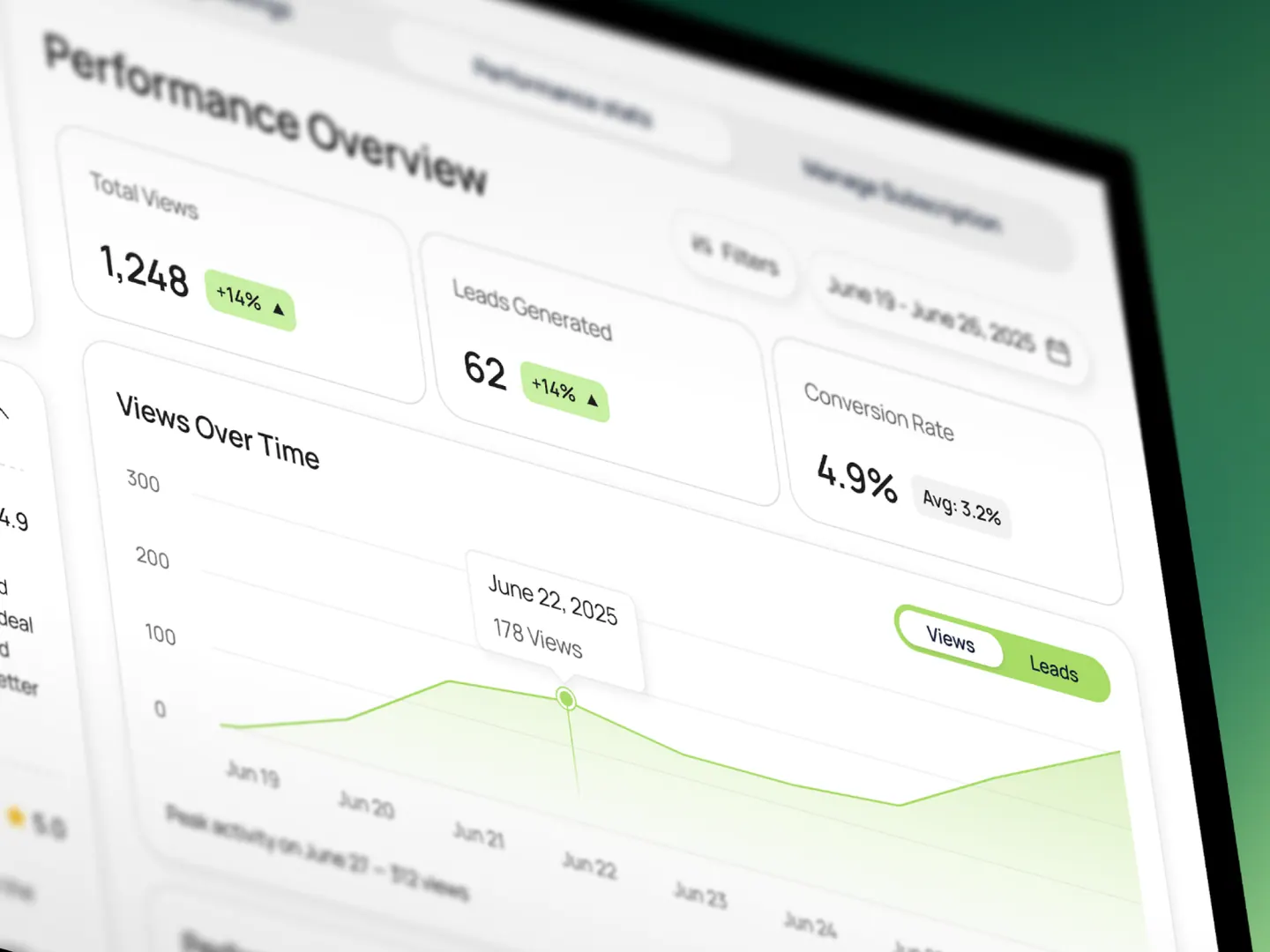

![Expert Listing performance overview: Total Views 1,248 and Leads Generated 62, each with a +14% change marked by both colour and an arrow, Conversion Rate 4.9% shown against a 3.2% average, and the selected date range spelled out above a views-over-time chart](https://www.themasterly.com/images/shots/expert-listing-proptech-marketplace-ux-ui-design--7-w1440.webp)

Three things worth copying here: every figure carries a comparison, the change is signalled by an arrow as well as by colour, and the date range is spelled out in full rather than implied by a highlighted preset.

## The component layer

**KPI cards** need the figure, a label, and a comparison. A number with no baseline is not information. "$48,200" says nothing; "$48,200, up 12% on last month" says something. Where a delta is not meaningful, say so rather than showing 0%.

**Charts** should be chosen by the question. Trend over time is a line. Composition at a point is a bar, and rarely a pie. Correlation is a scatter. The chart type that looks most impressive is almost never the one that answers fastest.

**[Data tables](https://www.themasterly.com/glossary/data-table)** carry more dashboard work than charts do, and get less design attention. Column choice, sort defaults, [filters](https://www.themasterly.com/glossary/filter-ui), and [bulk actions](https://www.themasterly.com/glossary/bulk-actions) decide whether the table is usable at ten thousand rows or only at fifty.

**Colour** must not be the only signal. A red figure needs a direction arrow or a label beside it, both for the roughly one in twelve men with a colour vision deficiency and for anybody glancing at a screen in bright light. See [color system](https://www.themasterly.com/glossary/color-system).

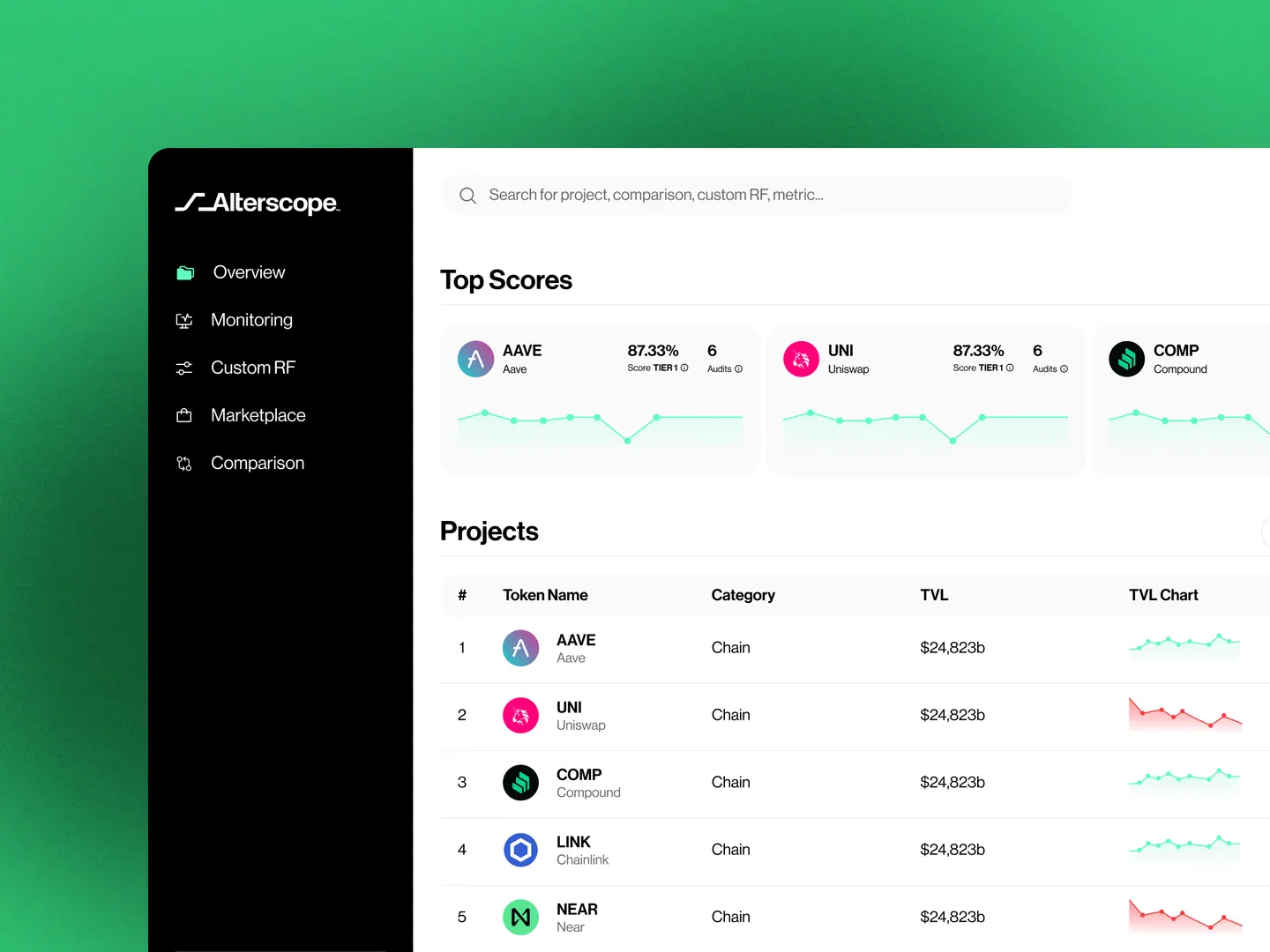

![Alterscope risk analytics dashboard: Top Scores cards with sparklines above a projects table listing token, category and TVL with an inline trend chart on every row](https://www.themasterly.com/images/shots/alterscope-fintech-saas-platform-redesign-masterly-case-study-w1440.webp)

The cards get the attention in a screenshot; the table does the work. Sparklines inside the rows let someone scan direction across fifty projects without opening any of them.

## The states nobody designs

On a dashboard these are not edge cases. They are what new customers see first.

**Empty.** A new account has no data. Zeroed-out charts read as a broken product. The [empty state](https://www.themasterly.com/glossary/empty-state) should say what will appear here and offer the one action that starts producing it.

**Loading.** Dashboards aggregate from several sources at different speeds. Blocking the whole screen on the slowest query wastes the fast ones. Load each region independently with [skeletons](https://www.themasterly.com/glossary/skeleton-loading) that match the shape of what is coming.

**Error.** A failed query must never render as an empty result. Telling a customer with nine thousand records that they have none is a data-loss message that looks like success. See [error state](https://www.themasterly.com/glossary/error-state).

**Stale.** When live data stops updating, say when it last refreshed. A dashboard confidently showing yesterday's numbers is worse than one admitting it cannot reach the source.

**Partial permission.** Somebody who can see three of six panels should see three panels and an explanation, not six broken ones.

## What separates good from bad

The dashboards people keep open share a small set of traits, and almost none of them are visual.

They **answer the first question without interaction.** No filtering, no scrolling, no interpretation.

They **say what a number means**, not just what it is. A figure with a comparison, a target, or a threshold is usable. A bare figure is a lookup.

They **make the abnormal loud and the normal quiet.** If everything is highlighted, nothing is.

They **survive real data.** Long account names, negative values, thousands of rows, a customer with one record and a customer with a million. Designs validated only against tidy placeholder data break on contact with production, which is the strongest argument for prototyping against a real dataset early.

They **respect what the user already knows.** A finance team has terms for things. Renaming them to something cleaner costs more than it gains.

## Real products, and the decision each one represents

**Stripe** treats the dashboard as an inspection surface. Dense, event-oriented, built for someone who needs to trace a specific transaction and read its full history. That density is right for developers and finance operators, and copying it into a product used by occasional non-technical users produces anxiety rather than confidence.

**Linear** takes the opposite position: an opinionated default view with very little configuration. The bet is that a well-chosen default beats a customisable screen most people never customise. It usually does.

**Datadog** is a monitoring dashboard at the extreme end of density, and it works because its users are specialists who spend hours a day in it and would lose more time to scrolling than to scanning.

**Google Analytics 4** is the widely-cited example of an exploratory dashboard where the depth arrived without a usable default. The lesson is not that exploration is wrong. It is that an exploratory tool still needs an opening view that answers something on its own.

**Ramp and Mercury** both lead with a single figure chosen for a specific role, which we broke down screen by screen in our [fintech dashboard guide](https://www.themasterly.com/blog/fintech-dashboard-design-guide).

## What we see most often in audits

**The hierarchy was built around available data.** The first screen shows what was easy to query rather than what was asked.

**One dashboard for every role.** Serving four personas at sixty percent each.

**Density borrowed from a different audience.** Developer-tool density applied to occasional users.

**States shipped as an afterthought.** Empty, error, and loading designed at implementation time by whoever hit them.

**Charts chosen for looks.** A donut where a bar answers faster.

**No stated time period.** The single most common source of a dashboard being misread.

## Pre-launch checklist

| Question | What a good answer looks like |
| --- | --- |
| Which of the four jobs is this? | One named job, not a blend |
| Who is the primary user? | A specific role, not "our users" |
| What is their first question? | One question, validated with real users |
| Which metric answers it? | One figure that dominates the hierarchy |
| What action does this drive? | A visible next step, not a dead end |
| Is the density right for this role? | Calibrated to how often they open it |
| Does the empty state teach? | Explains what appears and how to start |
| Can error be told from empty? | Two distinct states, error offers retry |
| Is the time period stated? | In words, not implied by a highlight |
| Has it been tested on real data? | Long names, negatives, and scale |

## Where to go next

If the dashboard exists and people are not using it, the cause is usually one of the six above, and a [UX audit](https://www.themasterly.com/blog/ux-audit-guide) finds it faster than a redesign. If you are building the first version, name the job and the primary metric before anything else is drawn.

We design dashboards for B2B SaaS teams where the screen is the product rather than a feature of it. If yours is not earning the attention it should, [our UX audit service](https://www.themasterly.com/services/ux-audit) starts with exactly this, or [see how we work as an embedded design team](https://www.themasterly.com/services/embedded-design-team).

## FAQ

**What makes a good dashboard design?**

A good dashboard answers its user's first question without scrolling, interaction, or interpretation. In practice that means one metric leads the hierarchy, supporting data sits below it in decreasing priority, and every element earns its place by being something the user acts on. Visual polish has almost nothing to do with it. The most common cause of a dashboard people stop opening is that its layout was organised around the data available rather than around the question being asked.

**What are the main types of dashboards?**

Four jobs cover almost everything. Monitoring dashboards alert you to anomalies in live data. Reporting dashboards summarise a fixed period and are usually exported or shared. Exploratory dashboards let analysts slice and drill into data to find something new. Operational dashboards drive the next action in a workflow. The job determines refresh rate, interaction depth, density, and what belongs above the fold, so naming it before designing is the highest-leverage decision in the project.

**How many metrics should a dashboard show?**

One should dominate, with roughly five to seven supporting figures visible without scrolling. The constraint is not an arbitrary rule about working memory but a practical one: every additional card makes the leading metric less prominent. If a stakeholder asks for a twelfth KPI, the useful question is which of the existing eleven it replaces.

**How dense should a dashboard be?**

As dense as the primary user's role and usage frequency justify. Somebody living in a tool all day reads compact tables faster than spacious cards, because scrolling costs them more than scanning. Somebody opening it monthly needs air, labels, and context. Copying the density of a developer tool into a product used by occasional non-technical users is a frequent and expensive mistake.

**What is the difference between a dashboard and a report?**

A report is a fixed snapshot of a defined period, usually exported and read once. A dashboard is a live surface people return to. That difference changes everything downstream: a dashboard needs states for stale data, partial loads, and permissions, while a report mostly needs to print correctly. Products that build a report and call it a dashboard end up with a screen nobody opens twice.

**What should a dashboard show when there is no data yet?**

A purpose-built empty state that explains what will appear here and gives one action that starts producing data. This is the screen every new customer sees first, and shipping it as a set of zeroed-out charts tells them the product is broken. It also must be visibly distinct from an error state, because showing "no records" after a failed request tells a customer with thousands of records that their data is gone.
